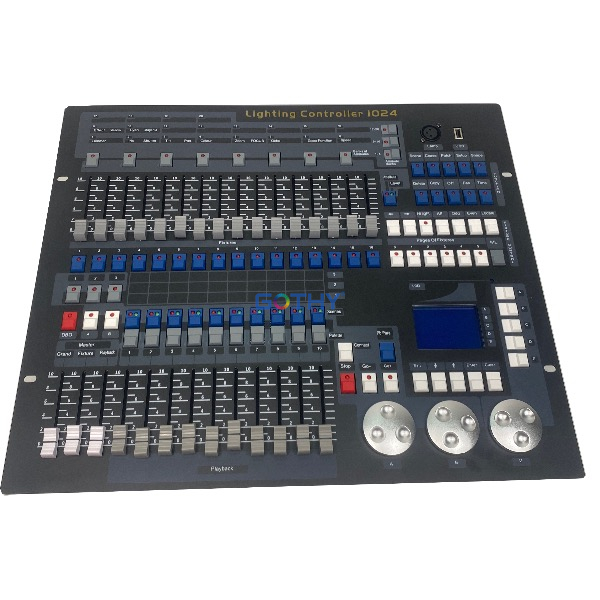

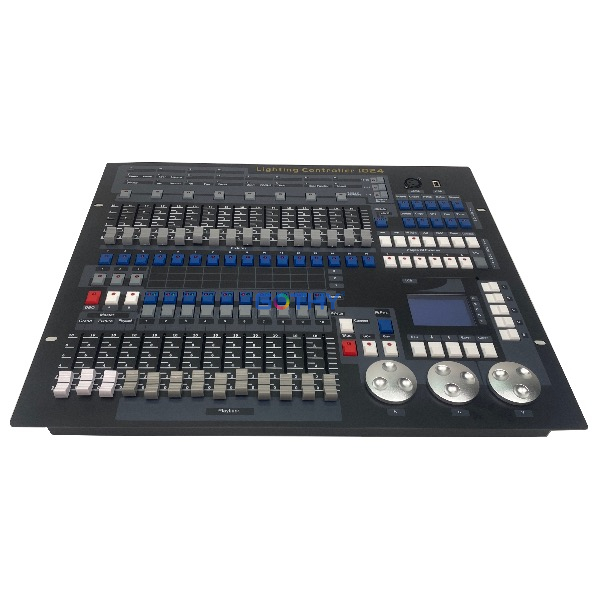

1024 channels DMX console
DMX512 with 1024 channels
The number of computer lights to be connected is 96
Computer light reconnection address code support
Horizontal and vertical exchange support for lighting fixtures
Lamp channel reverse output support
Lamp channel sliding mode switching support
Each computer light can have up to 40 control channels, including the main channel and 40 fine adjustment channels
The light library supports the Pearl R20 light library
60 scenes that can be saved
Number of scenarios that can run simultaneously 10
The total number of steps in a multi-step scenario is 600
Time control for scene fading in, fading out, and LTP sliding
Each scene can store 5 graphics
Push rod activation scene and dimming support
Interlocking scenario support
Point control scene support
The graphic generator can generate Dimmer, P/T, RGB, CMY, Color, Gobo, Iris, Focus graphics
Can run 5 graphics simultaneously
Master control push rod global, replay, lighting fixtures
Immediate black market support
Rotary table adjustment channel value support
Push rod adjustment channel value support
Push rod dimming support
USB drive reading supports FAT32 format
