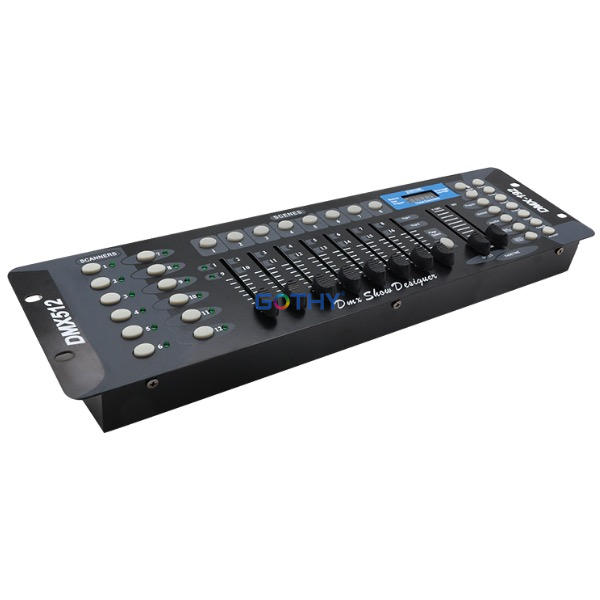

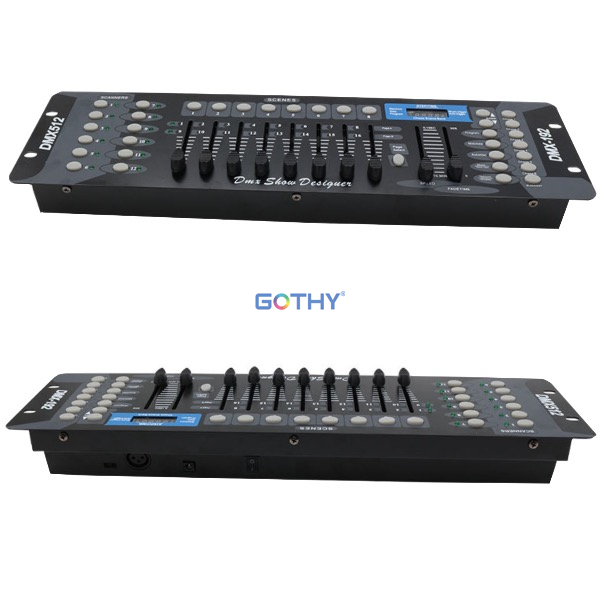

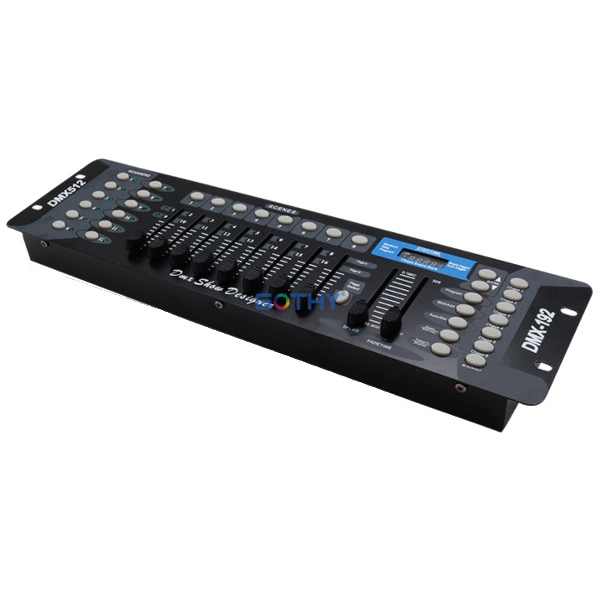

192 channels stage light controller
1) This machine is a 192 channel DMX512 signal control console, which adopts precise CPU processing technology and has a DMX512 polarity selection switch.
2) There is a MIDI interface, which can be controlled by MIDI signals at any time. It has MIDI triggering, BANK/CHAES, and BANK OUT functions;
3) There are 12 SCANNERs, each containing 16 channels, divided into pages A (1-8) and B (9-16)
4) Channel position can be adjusted in micro steps or paused at will, with overlapping operations on pages A and B.
5) 30 programmable BANKs, each containing 8 programmable SCENCEs
6) When programming, when the FINE key is pressed and the corresponding LED is on, the joystick value can be set.
7) Programmable 6 CHASES can be stacked and run;
8) Each CHASES can be programmed into 240 steps (i.e. 30 BANK SCENEs) with three operating modes: automatic, manual, and voice control;
9) In automatic operation mode, FADE can choose to have ALL or X/Y. All have speed regulation.
10) Each SCANNER can be set with either Assigw or Review.
11) The control consoles can transmit internal programmed data to each other and have a Black out output function;
12) 8 * 2 LCD display with internal backlight, English and Chinese display operation steps; Each button is equipped with corresponding LED indicator lights;
13) There is a DC interface, configured with a DC power supply (input AC120V~230V, output DC9~12V, 300~500MA).
Size (mm): 610x195x150 1PC
Weight: 2.5kgS Gross weight: 3.6kg
